Wessex Step Lifts

Wessex Step Lifts have been designed as a compact solution to give wheelchair users access where difficulties exist due to a change in level or the presence of a short run of steps.



Wessex SP500 Step Lift

 Wessex SP 500 Domestic Step Lift

Wessex SP 500 Domestic Step Lift

Wessex SP500 Features

  • Shallow ramp for easy access
  • Non-slip flooring
  • Easy to use internal controls for operator independence
  • Call stations
  • Manual lowering for use in the event of a power failure
  • Safe working load - 250kg
  • Travel height - 500mm

Wessex SP 500 Options

  • A key control system can be incorporated into the call stations to prevent unauthorised use
  • Bridging plate
  • Interlocked safety gate at upper level
  • Special colour finishes




Wessex LR Low Rise Step Lifts

 Wessex LR Low Rise Domestic Step Lift

Wessex LR Low Rise Domestic Step Lift

  • 2-way rocker post mounted call station
  • Internal or external application
  • Automatic power folding ramp
  • 5 year Anti-Corrosion Warranty
  • Colour - Bleu Sable
  • Shallow ramp for easy access
  • Non-slip floor
  • 2-way rocker post mounted call station
  • Internal or external application
  • Automatic power folding ramp
  • 5 year Anti-Corrosion Warranty
  • Colour - Bleu Sable
  • Shallow ramp for easy access
  • Easy to use internal controls for operator independence
  • Manual lowering for use in the event of a power failure
  • Safe working load - 300kg (47stone)
  • Maximum step height - 1000mm
  • Concertina blind fitted to underside of platform

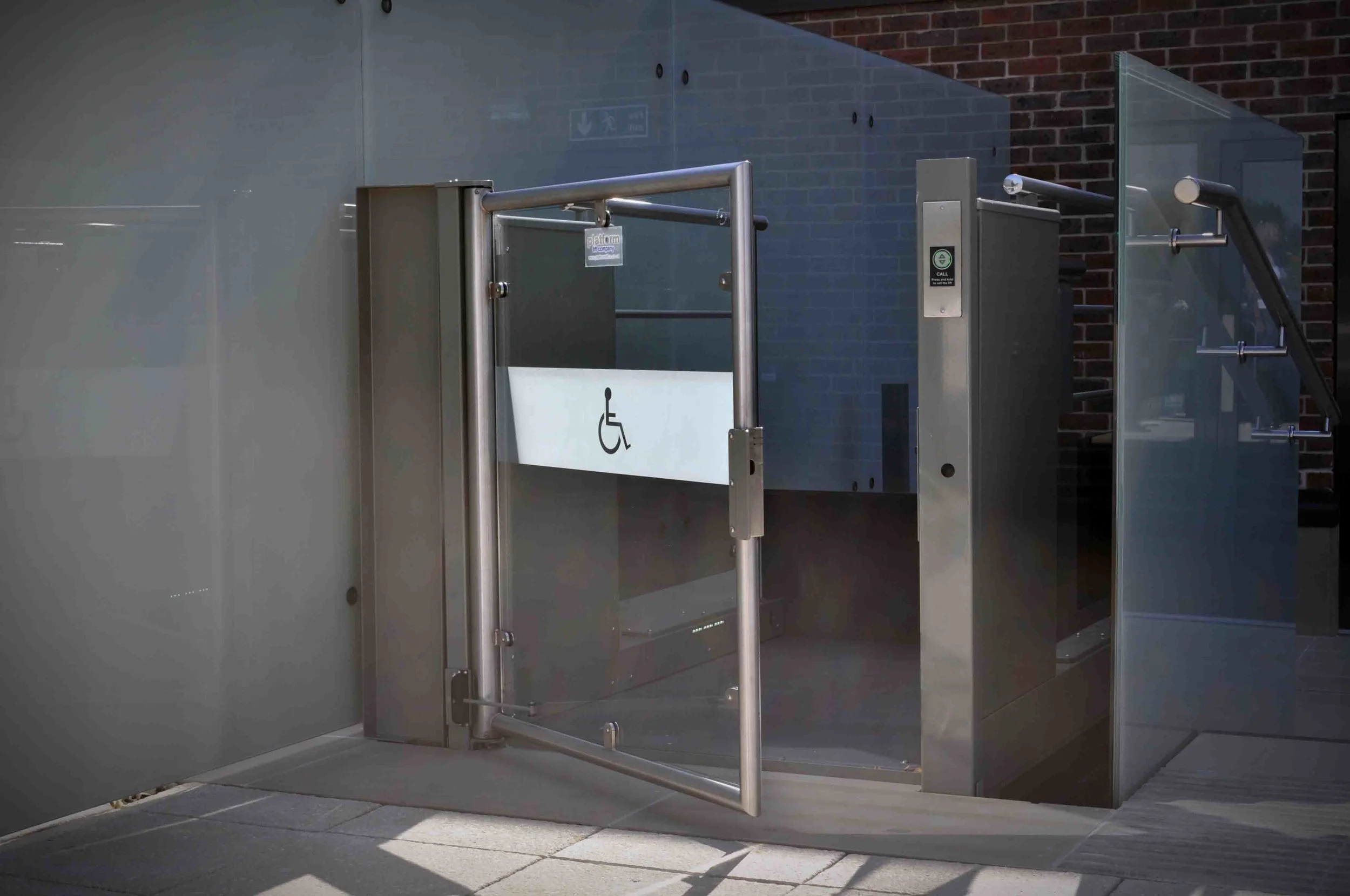

 Wessex LR Low Rise Public Access Platform Lift

Wessex LR Low Rise Public Access Platform Lift

Wessex LR Platform Dimensions (usable area)

  • LR800 - 1450 x 800mm
  • LR900 - 1450 x 900mm
  • LR1100 - 1450 x 1100mm

Footprint Dimensions

  • LR800 - 1885 x 1004mm
  • LR900 - 1885 x 1104mm
  • LR1100 - 1885 x 1304mm



 Wessex Low Rise Internal Step Lift

Wessex Low Rise Internal Step Lift

Wessex LR Step Lift Options:

  • A key switch to isolate the lift when not in use
  • Interlocked gate at the upper level
  • Travelling safety barrier
  • Bridging units
  • Power operated gates
  • Special colour and floor finishes
  • Side infill panels - glass or perspex
  • High spec controls
  • Voice annunciator and platform level indication
